DIADesigner
Integrated Development & Engineering Software
User-oriented Project Management
Support IEC61131-3 Standard Programming Language
Data Management
One Cable Communication
Intuitive Topology Configuration
Commission Tool
Library Manager
DIACloud communication
Support Device
Integrated Development & Engineering Software
Provides a programming environment for machine system developers to enhance system configuration and development efficiency
- IEC61131-3 programming environment

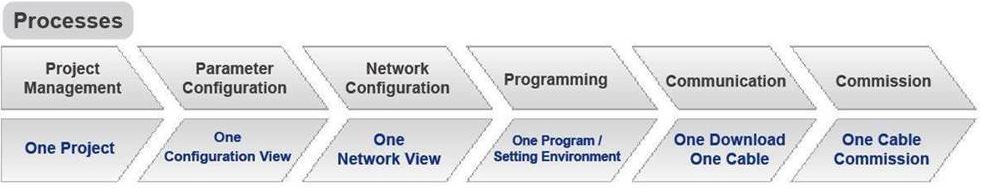

- Integrates project, configuration, programming, commission, and monitoring in a simple environment

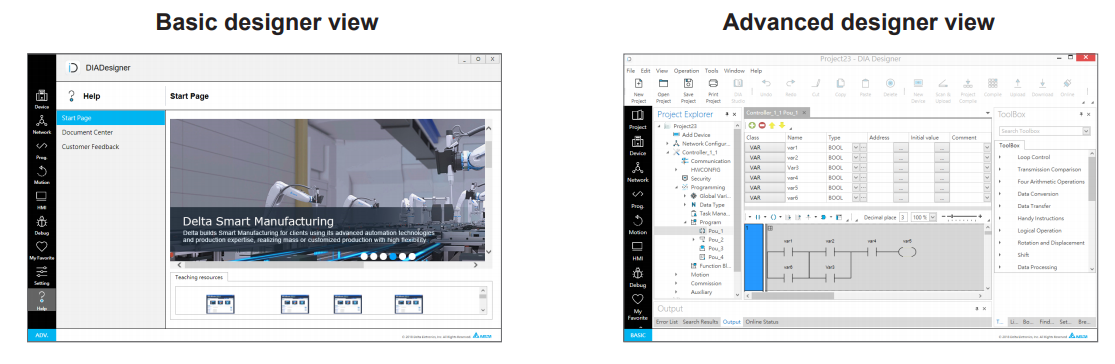

User-oriented Project Management
- Basic designer view: Wizard Design for operation guidance
- Advanced designer view: Complete functions via menus

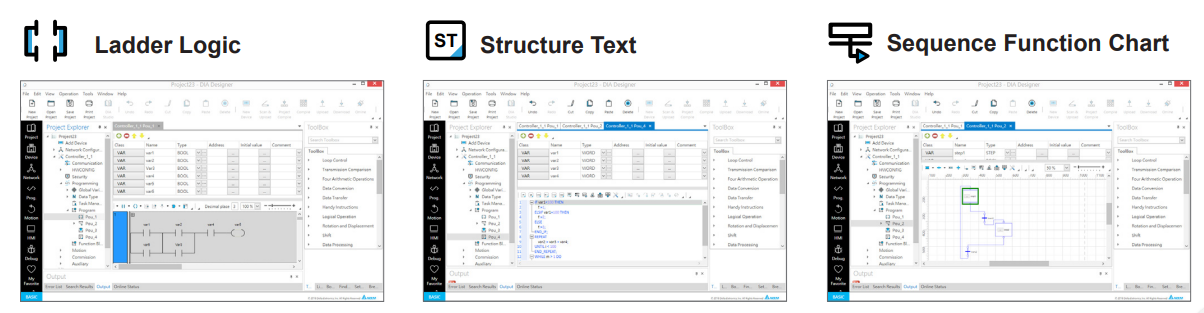

Support IEC61131-3 Standard Programming Language
Data Management

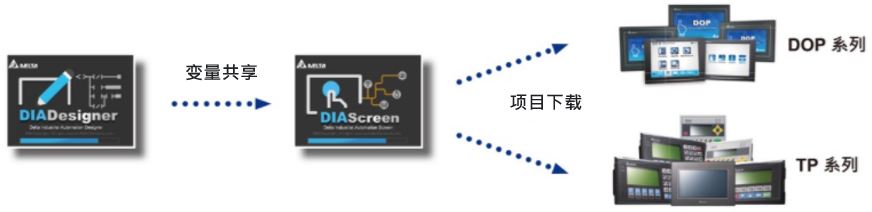

- Variable sharing with DIAScreen

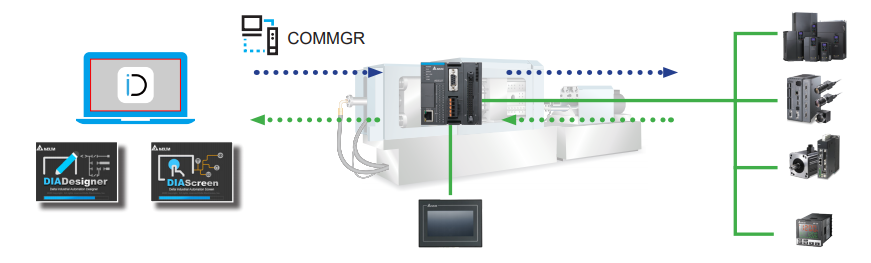

One Cable Communication
- Integrates multiple protocols in COMMGR
- Requires only one cable to transfer the parameter configuration to the project

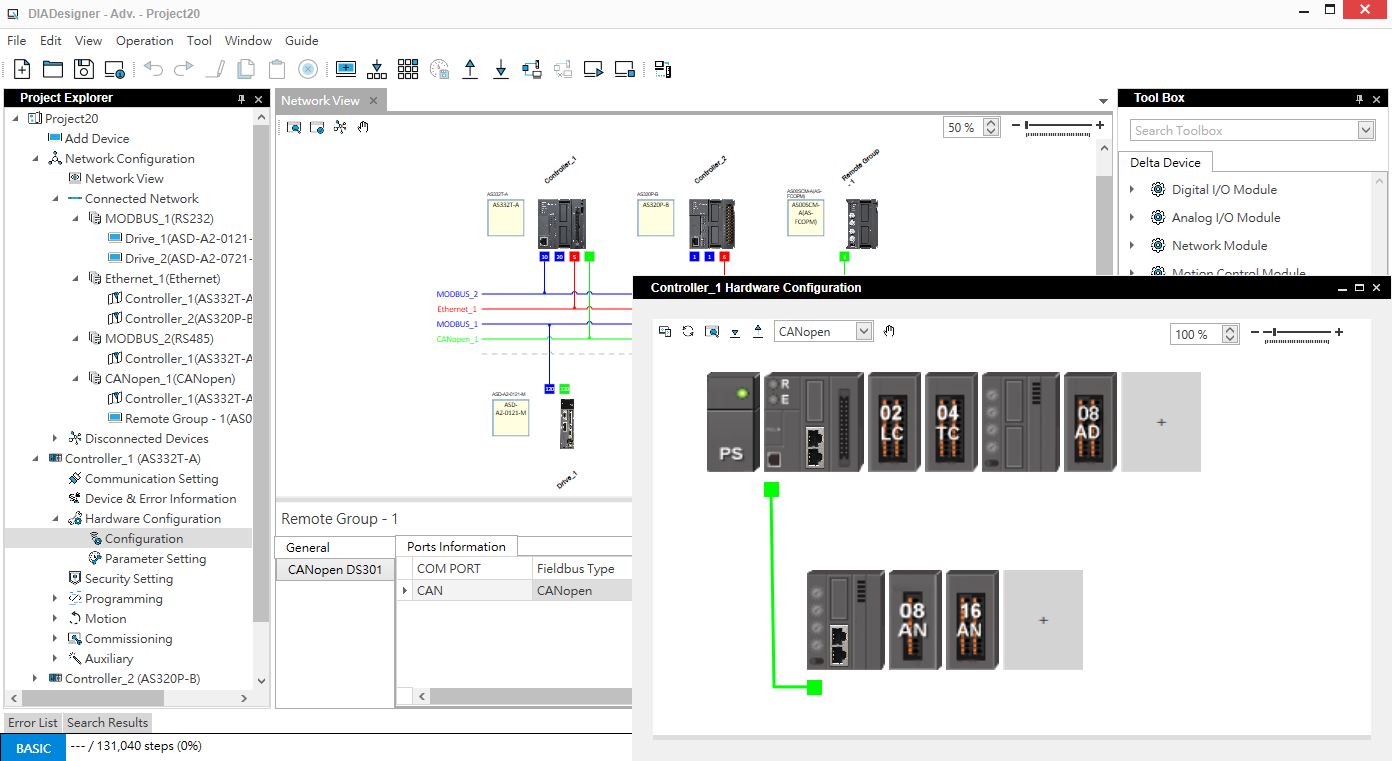

Intuitive Topology Configuration
- Supports topology to configure the device protocols in the project via a user-friendly system

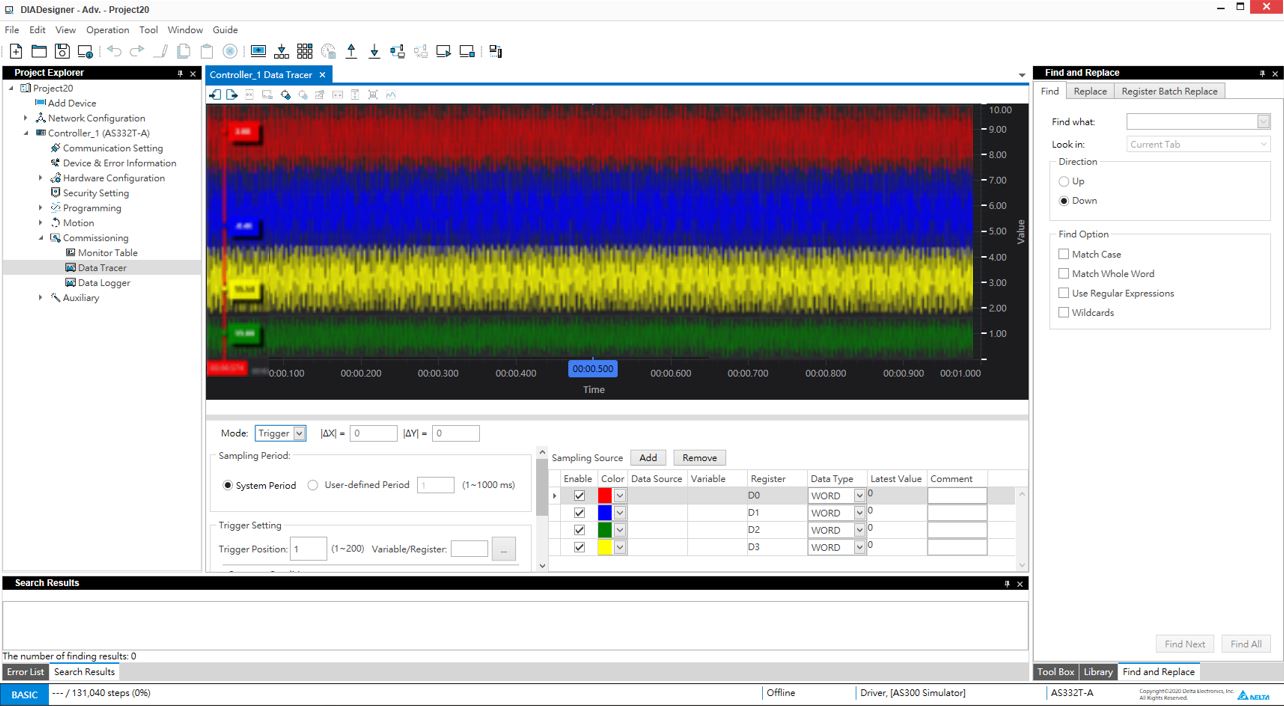

Commission Tool
- Provides parameter management, gain tuning, motion control setting, oscilloscope, device

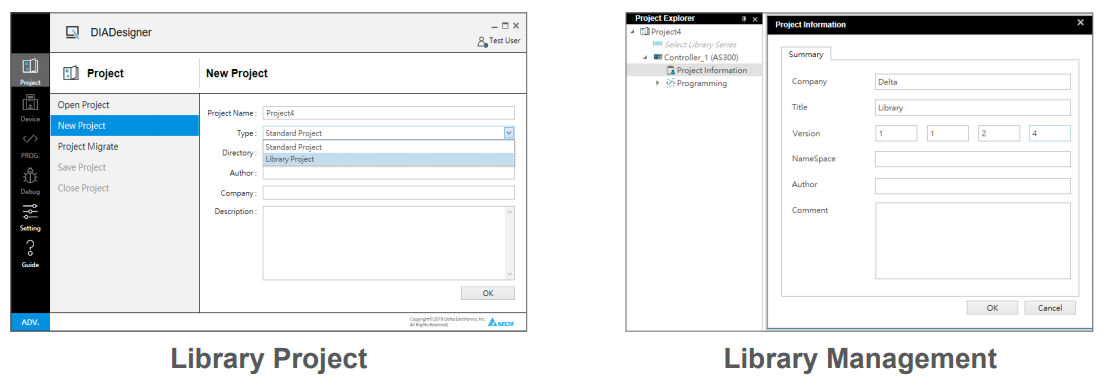

Library Manager
- Proven library manager for the reutilization of application
- Support HVAC application related library.
- User can create their own library application

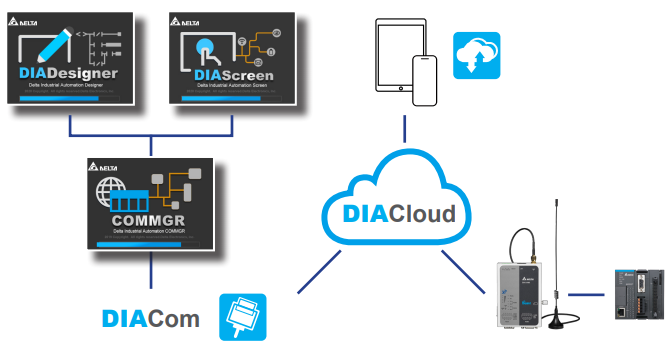

DIACloud communication
- Supports DIACloud platform communication via DIACOM channel
- Router read/write data from device via DIACloud
- Combines with Delta IES solution to construct IoT for more automation applications and Industry 4.0 upgrades
Support Device
